The guide below outlines the PCIE layout for the ICON-3100-GM
TABLE OF CONTENTS
ICON-3100-GM

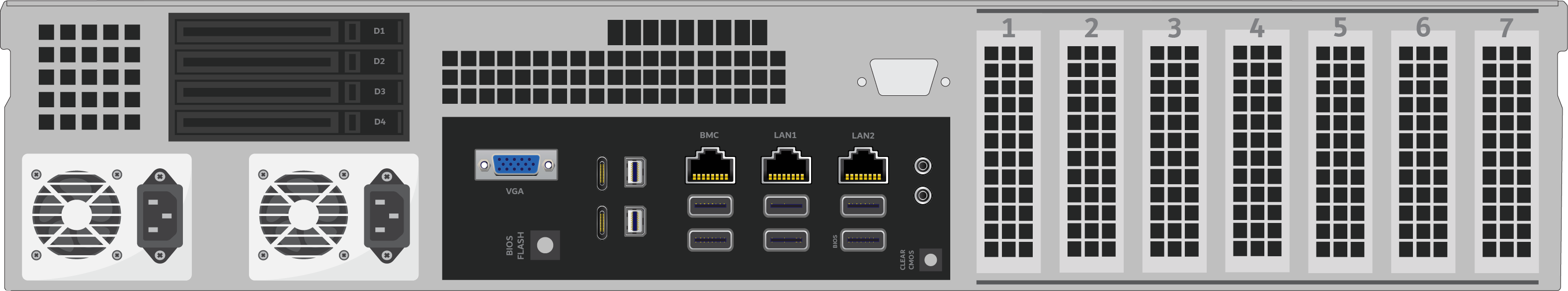

2U - Standard
| Slot | Designation | BUS ID | SUN | Speed | Dimensions |
|---|---|---|---|---|---|
| 1 | PCIEX16(G5)_1 | 0000:7a:00.0 | 4031 | x16, Gen5 | HHFL Single Width |
| 2 | PCIEX16(G5)_2 | 0000:e2:00.0 | 3999 | x16, Gen5 | HHFL Single Width |
| 3 | PCIEX16(G5)_3 | 0000:46:00.0 | 4047 | x16, Gen5 | HHFL Single Width |
| 4 | PCIEX16(G5)_4 | 0000:ae:00.0 | 4015 | x16, Gen5 | HHFL Single Width |
| 5 | PCIEX16(G5)_5 | 0000:0b:00.0 | 4063 | x16, Gen5 | HHFL Single Width |
| 6 | PCIEX16(G5)_6 | 0000:c8:00.0 | 4003 | x8, Gen5 | HHFL Single Width |
| 7 | PCIEX16(G5)_7 | 0000:94:00.0 | 4023 | x16, Gen5 | HHFL Single Width |

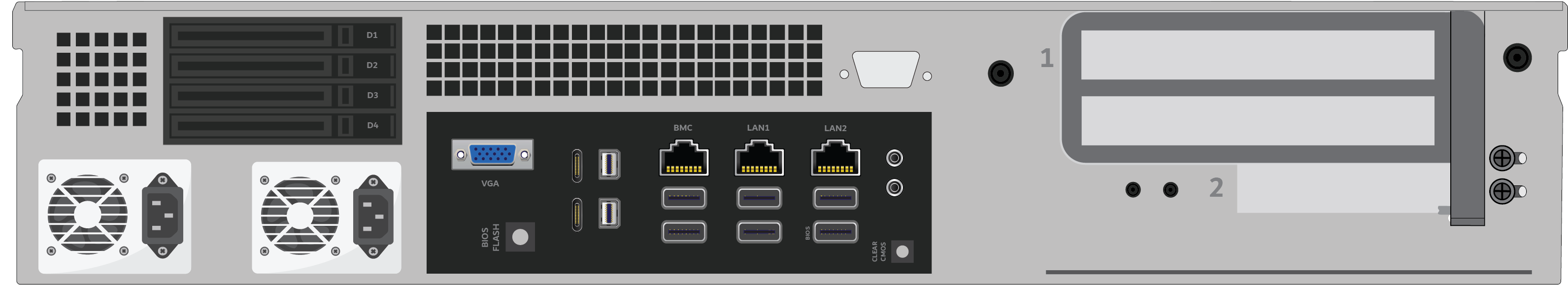

2U - Horizontal
| Slot | Designation | BUS ID | SUN | Speed | Dimensions |
|---|---|---|---|---|---|
| 1 | PCIEX16(G5)_1 | 0000:7a:00.0 | 4031 | x16, Gen5 | FHFL Double Width |
| 2 | PCIEX16(G5)_3 | 0000:46:00.0 | 4047 | x16, Gen5 | HHFL Single Width |

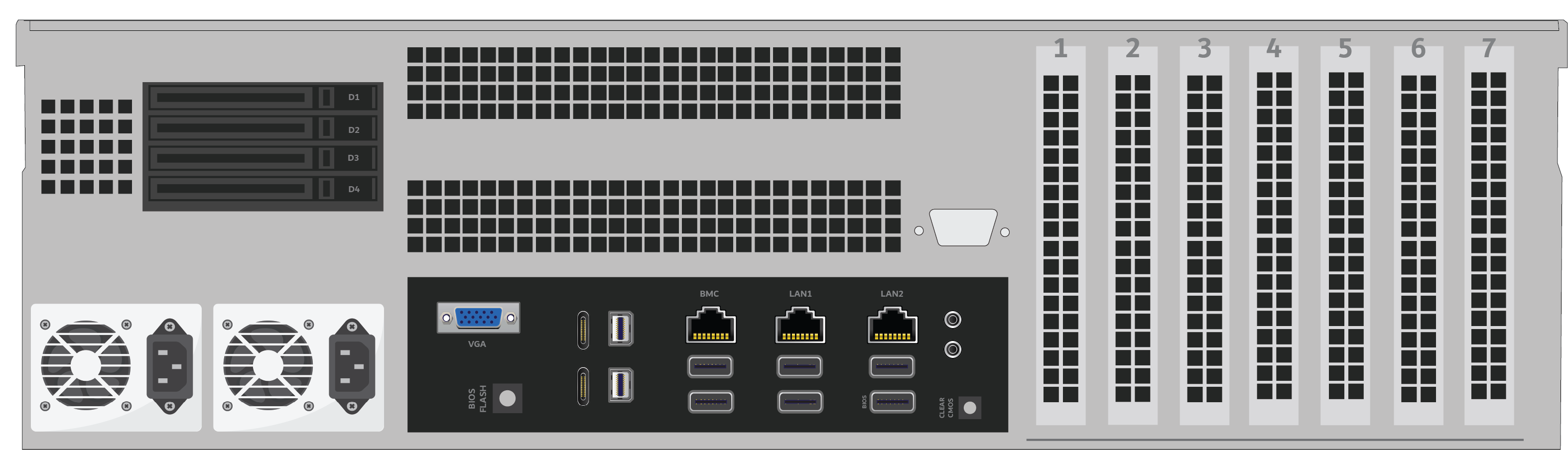

3U - Vertical
| Slot | Designation | BUS ID | SUN | Speed | Dimensions |
|---|---|---|---|---|---|
| 1 | PCIEX16(G5)_1 | 0000:7a:00.0 | 4031 | x16, Gen5 | FHFL Single Width |
| 2 | PCIEX16(G5)_2 | 0000:e2:00.0 | 3999 | x16, Gen5 | FHFL Single Width |
| 3 | PCIEX16(G5)_3 | 0000:46:00.0 | 4047 | x16, Gen5 | FHFL Single Width |
| 4 | PCIEX16(G5)_4 | 0000:ae:00.0 | 4015 | x16, Gen5 | FHFL Single Width |
| 5 | PCIEX16(G5)_5 | 0000:0b:00.0 | 4063 | x16, Gen5 | FHFL Single Width |
| 6 | PCIEX16(G5)_6 | 0000:c8:00.0 | 4003 | x8, Gen5 | FHFL Single Width |
| 7 | PCIEX16(G5)_7 | 0000:94:00.0 | 4023 | x16, Gen5 | FHFL Single Width |
